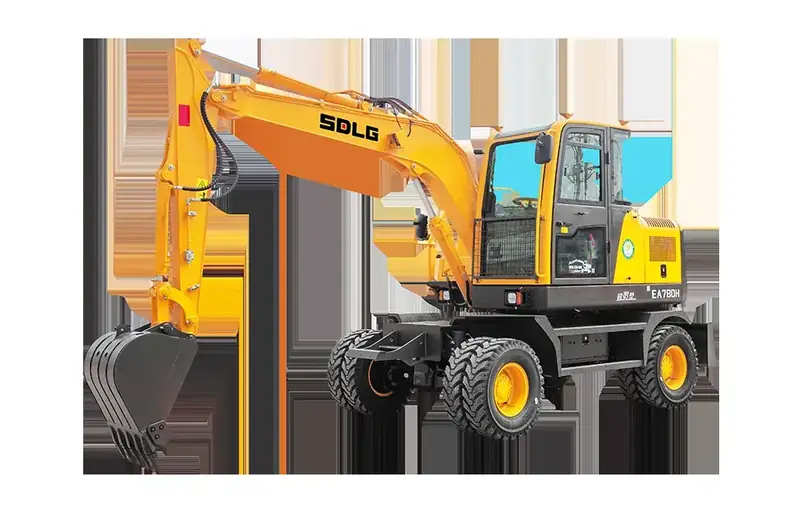

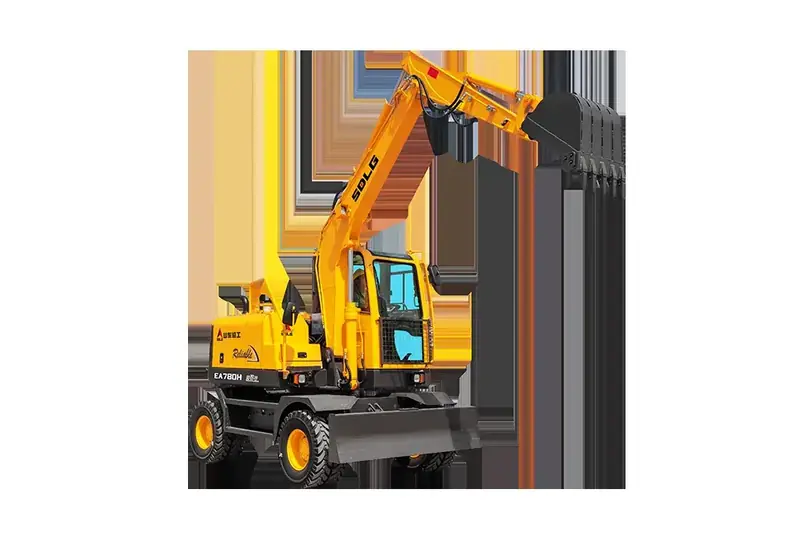

SDLG (Lingong) EA780H

Used SDLG (Lingong) EA780H wheeled excavator — reference specifications, condition points and export notes for this model.

The SDLG EA780H is a compact wheeled digging excavator with a 0.23 m3 bucket and 48 kW engine. Its 3319 mm maximum dig depth and 30 km/h travel speed suit utility and light construction digging where the machine moves between sites.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for SDLG (Lingong) EA780H
Bucket capacity	0.23m³
Rated power	48kW
Engine	48kW
Travel speed	30km/h
Max dig depth	3319mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: SDLG (Lingong) EA780H

A compact wheeled digging excavator in this class is aimed at trenching, utility installation, landscaping and light site handling where the machine must travel between jobs on its own wheels. The EA780H carries a 0.23 cubic metre bucket and a rated power of 48 kW from its China IV emission engine, with a maximum dig depth of 3319 mm. That reach and capacity suit residential drainage, cable and pipe work, and general excavation in confined spaces. The 30 km/h travel speed supports movement along roads between scattered work points. On site, the wheeled undercarriage gives quick repositioning and road travel, but the buyer should weigh stability at full reach and on side slopes.

Rubber tyres perform differently from tracks on soft or wet ground, so ground conditions and tyre specification matter. Check the steering, the turning circle and the travel lock that secures the machine while digging. Outriggers or a dozer blade add steadiness. Attachment choice, whether a narrow trench bucket, a grading bucket or a breaker, should follow the work planned, and the hydraulic circuit should be matched to those attachments. Inspection before payment should cover the engine for smoke, leaks and stable running, and the China IV emission components for completeness.

Cycle the hydraulics fully and watch for drift, chatter or weak functions. Pins and bushes at the boom, arm and bucket joints should be checked for play, and the wheel hubs, bearings and tyres for wear and damage. Test the brakes and the travel lock. Look for cracks or repairs around the boom foot, kingpost and chassis, and ask for service history where available. How this size ships depends on the unit's real dimensions, its weight and the destination port.

Compact wheeled excavators can often be loaded on a flat rack or into a container when they fit the internal limits, while RoRo is common where the machine can be driven aboard at a suitable terminal. Breakbulk is chosen when container or RoRo handling is not practical. The buyer should confirm measured dimensions, lifting points and the receiving port's equipment before the loading plan is fixed.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used SDLG (Lingong) EA780H available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used SDLG (Lingong) EA780H cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a SDLG (Lingong) EA780H shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
