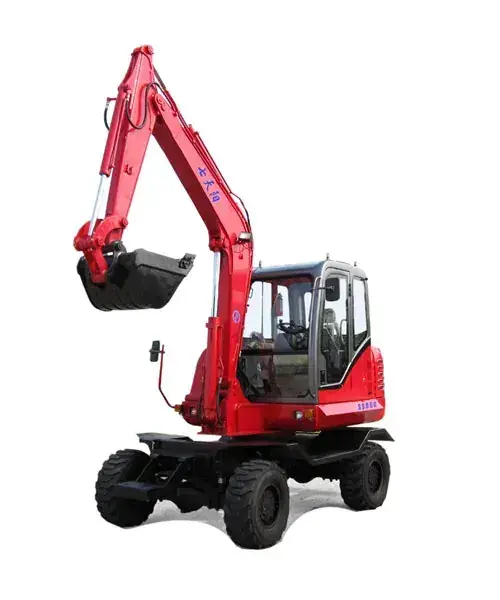

Qitianyang SSD80-7
Used Qitianyang SSD80-7 wheeled excavator — reference specifications, condition points and export notes for this model.
The Qitianyang SSD80-7 is a wheeled digging excavator weighing 6900kg with a 0.1~0.4m3 bucket. A 42kw/2200rpm engine gives travel speeds of 30/11km/h, and maximum dig depth is 3500mm. This class suits light trenching, utility and site preparation work with travel between locations.
Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.
Reference specifications
| Operating weight | 6900kg |
|---|---|
| Bucket capacity | 0.1~0.4m3 |
| Rated power | 42kw/2200rpm |
| Engine | 42kw/2200rpm |
| Travel speed | 30/11km/h |
| Max dig depth | 3500mm |
Buying brief: Qitianyang SSD80-7
The Qitianyang SSD80-7 is a compact wheeled digging excavator under 8 tonnes, with an operating weight of 6900 kg, a bucket capacity of 0.1 to 0.4 m3 and a rated power of 42 kW at 2200 rpm. This class suits confined work such as urban trenching, landscaping, utility repairs and small construction sites where access is tight and road travel between jobs is useful. The 30/11 km/h travel speed supports movement on public roads, and the maximum dig depth of 3500 mm covers shallow trenches and service work. Its small footprint and low weight make it easier to position in restricted spaces than larger wheeled machines.
On site, the compact wheeled undercarriage gives good manoeuvrability, but the light weight means stability depends on careful setup, often with outriggers or a blade. Buyers should weigh tyre condition and type against the ground, check steering and the travel lock, and confirm that attachments and auxiliary hydraulics match the planned tasks. The bucket range of 0.1 to 0.4 m3 suits light digging, so match the bucket to the material and depth. Slopes and soft ground need attention because the machine concentrates load on four wheels and has limited counterweight.
Before paying, inspect the engine for leaks, smoke and steady power, and the hydraulics for pressure, hose condition and cylinder seals. Pins and bushes at the boom, arm and bucket wear with use, so check for play. Wheel hubs, bearings and brakes need review because road travel loads them, and the frame and boom should be checked for cracks or repairs. Confirm the steering and travel lock function, and run the machine through its dig and travel motions under load if possible.
Shipping for this compact class usually uses a container where dimensions allow, otherwise a flat rack, RoRo or breakbulk vessel. The choice depends on the unit's real dimensions, particularly height with the boom folded and width over the tyres, and on the destination port's facilities and sailing schedule. Buyers should request measured dimensions and weight, confirm whether the boom can be lowered, and check lashing points. The freight method follows from the actual size of the machine and the route, not from a standard rule.
